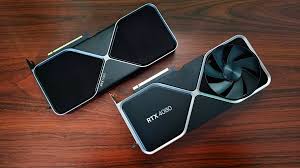

If you open a modern gaming PC or a workstation, one component dominates the space. It is huge, heavy, has multiple fans, and lights up like a spaceship. It is the Graphics Card.
But here is a common misconception: The “Graphics Card” and the “GPU” are not the same thing. The GPU is just a small silicon chip hidden deep inside. The massive structure around it is a complex life-support system.
Here is a tour of the anatomy of this beast, and why it is arguably more complex than the computer it is plugged into.
1. The Distinction: The Chip vs. The Card
First, let’s get the terminology right.
- The GPU (Graphics Processing Unit): This is the actual silicon chip, usually about the size of a postage stamp. This is the brain where the calculations happen.
- The Graphics Card (or Video Card): This is the entire board—the plastic, the metal, the fans, and the circuits that you hold in your hand.
Think of it like a car. The GPU is the engine block. The Graphics Card is the rest of the car—the fuel pumps, the radiator, the exhaust, and the chassis that makes the engine actually usable.
2. The PCB: A City Plan
If you strip away the cooling fans, you reveal the PCB (Printed Circuit Board). This is a highly dense electronic city.
- The VRAM Ring: You will see the main GPU chip in the center. Surrounding it, arranged in a tight square or semicircle, are black rectangular chips. This is the Video Memory (VRAM). They are placed physically close to the GPU to minimize the travel time of data (latency).
- The VRMs (The Power Plant): To the left or right of the GPU, you will see rows of small capacitors and chokes. These are the Voltage Regulator Modules.
- The electricity coming from your wall is “dirty” and unstable for a sensitive chip.
- VRMs clean and convert that power into a steady, perfect stream. High-end cards have more VRMs to allow for stable “overclocking” (running the chip faster than intended).
3. The Cooler: Battling Thermodynamics
Modern GPUs consume a massive amount of power—sometimes up to 450 watts or more. All that energy turns into heat. If that heat isn’t removed instantly, the silicon will melt. This is why graphics cards have grown from thin slices to massive “bricks.”
- The Cold Plate: A copper block that touches the GPU directly to soak up heat.
- Heat Pipes: These copper tubes aren’t just solid metal; they are hollow and contain a small amount of liquid. As the liquid heats up, it turns to vapor, travels to the cool end of the pipe, turns back to liquid, and flows back. It is a continuous cycle of phase-change cooling.
- The Fin Stack: The heat is moved into thousands of thin metal fins (the radiator) to maximize surface area.
- The Fans: These push cool air through the fins to dissipate the heat into your room.
4. The Specialized Cores: The Triple Threat
Inside the silicon of the GPU itself, the architecture has changed. Ten years ago, a GPU was just a block of “Universal Cores.” Today, a modern NVIDIA or AMD chip is actually split into three distinct departments:
- Rasterization Cores: These do the traditional work—drawing the shapes and textures of a video game.
- RT Cores (Ray Tracing): Specialized calculators dedicated only to calculating how light bounces. They do nothing else but math related to light physics.
- Tensor Cores (AI): These are the “brains” designed for Artificial Intelligence. They power features like DLSS (upscaling) and are the reason why your graphics card can run a chatbot or generate AI art.
Summary
The graphics card is unique because it is effectively a standalone computer. It has its own processor (GPU), its own memory (VRAM), its own power management (VRMs), and its own cooling system.
It is a brute-force machine designed to do one thing: crunch massive amounts of data in parallel, generating enough heat to warm a small room in the process.
